China Xinxing Anti-mine protection Anti-ambush Vehicle
The shield brand CXXGZ-MV-02 anti-mine protection anti-ambush vehicle, loaded with high-power electric injection diesel engine, 6AT automatic transmission, double horizontal arm independent suspension, bearing type common body protection body, good vehicle maintenance, high reliability, strong mobility, fast mobility, flexible deployment.Its dynamic and economic performance is advanced, military and civilian versatility, can meet the army, armed police and other aspects of the use needs.
SPECIFICATIONS
Overall dimension (L×W×H)mm: 6650×2550×2400±30
Wheelbas(mm): 3700
Front suspension / rear suspension mm: 1320/1630
Curb weight（kg）: 12800
Maximum Comba tweight（kg）: 16000
Max.Speed（km/h）: ≮120
The minimum turning diameter (m): ≯17
Climbing Capacity (%): 60
Ground clearance（mm): 330
Cruising Range（km）:≮1000
Seating capacity: 2＋10
engine type: ISLe 375
speed changer: 6AT
suspension: Spiral spring, double cross-arm independent suspension
Ballistic protection (Plus captivated armor): STANAG 4569 LV1（LV2~3）
Anti-mine protection: STANAG 4569 LV 4a3b(10kg Under / 8kg hull bottom TNT equivalent)
VIN stack: LZGCB2T25NX008635
DETAILS SHOW

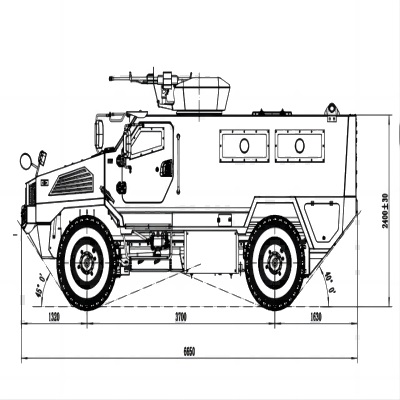

dimension
