Instruction
The Model CXXGZ-APC-01 Mine Resistant Ambush Protected Vehicle (Armored Troops Carrier GPMG Mounted)adopts special 4X4 chassis. The whole vehicle has 6.5mm bulletproof body, 49mm PC type bulletproof glass, and various police equipment such as alarm lights, sirens, color changing strobe lights, square alarm lights. The bulletproof performance reaches China class C level (GA668- 2006 of the China Ministry of Public Security), and can withstand the attack of 95 rifles 87 type 5.8mm ordinary bullets at a distance of 20 meters.The vehicle has strong deterrence and anti-elasticity, which has strong power, good mobility and strong off road ability. The V Shape Hull design modified to resist mines, simple explosives and other threats. The vehicle layout design with 3 doors and 10 windows, has greatly improved quickly reaction of the fighters and strong practicability. It’s special anti terrorism assault vehicle for the army and police.

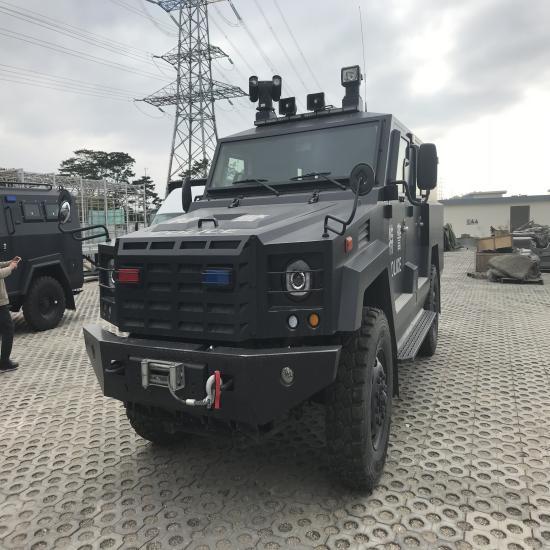

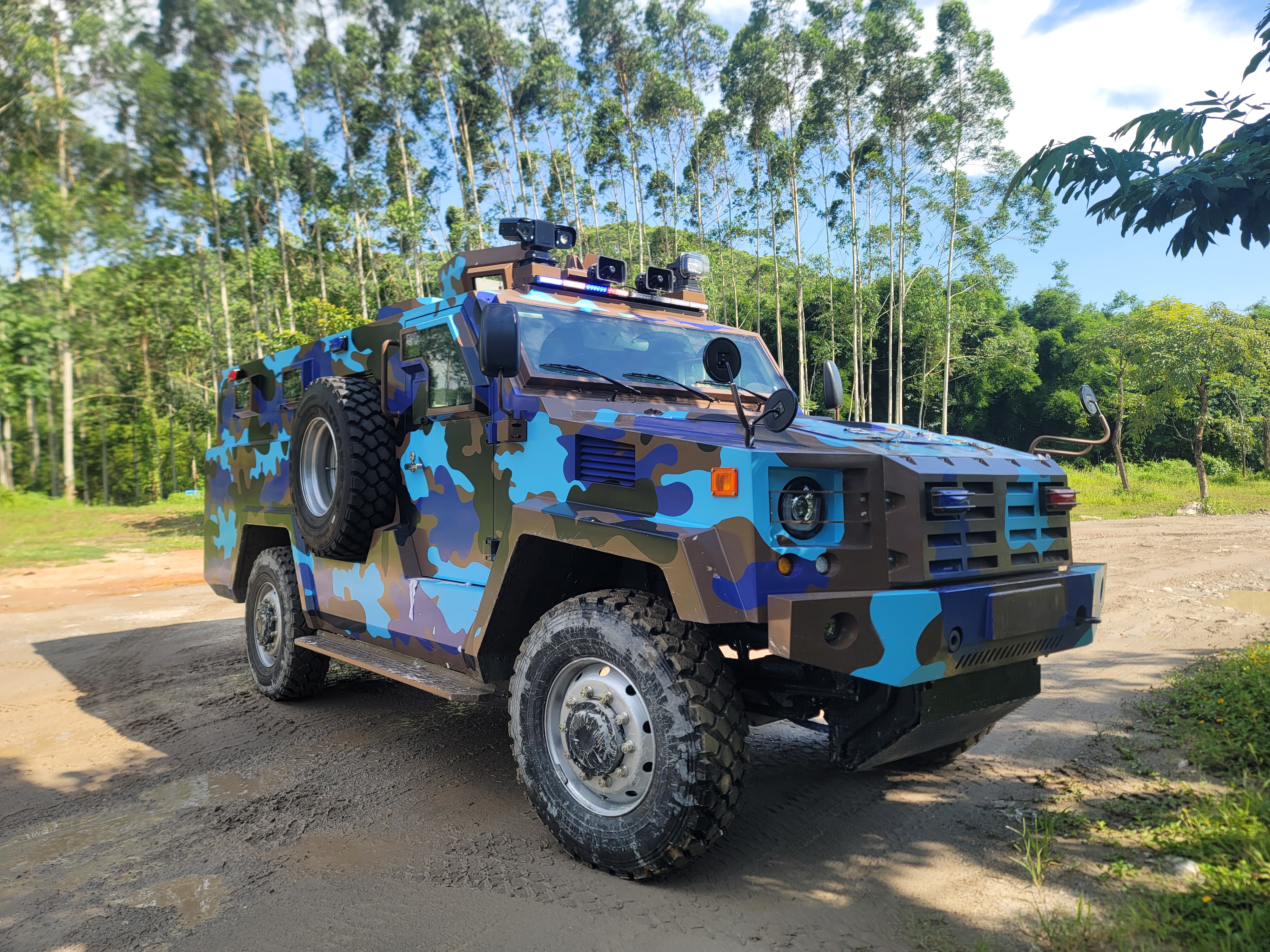

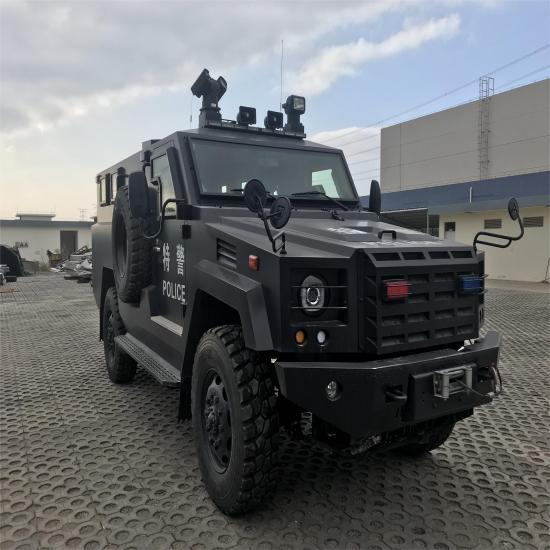

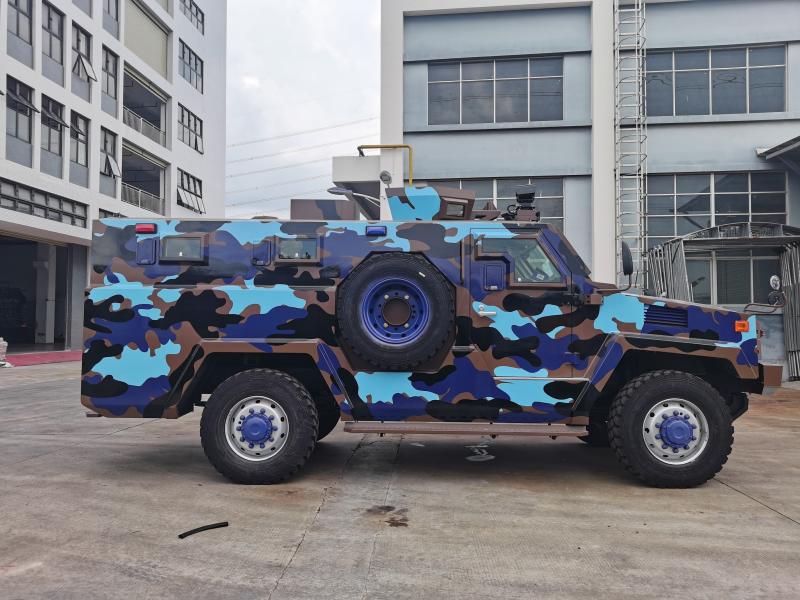

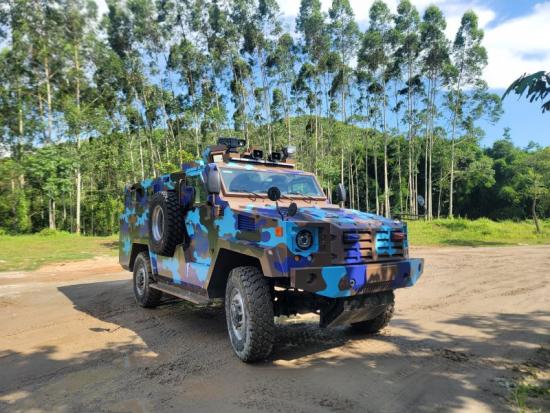

Appearance show
Parameter
|
Model |
CXXGZ-APC-01 |
|
Overall dimension(LxWxH) |
6610×2450×2490mm |
|
Wheelbase |
3800mm |
|
Max total capacity |
11000kg |
|
Kerb weight |
8700kg |
|
engine |
Cummins engine |
|
Transmission |
Allison 6 speed automatic transmission |
|
Fuel type |
Diesel fuel |
|
Displacement |
6.7L |
|
Rated power |
221/2500Kw/rpm |
|
Max torque |
900/1500N.m/rpm |
|
Max speed |
125Km/h |
|
Min turning radius |
16m |
|
Front/Rear track |
1878/1870mm |
|
Front/Rear overhang |
1325/1485mm |
|
Fuel tank capacity |
150L |
|
Tires model |
315/80R22.5 |
|
Qty of tires |
4+1 |
|

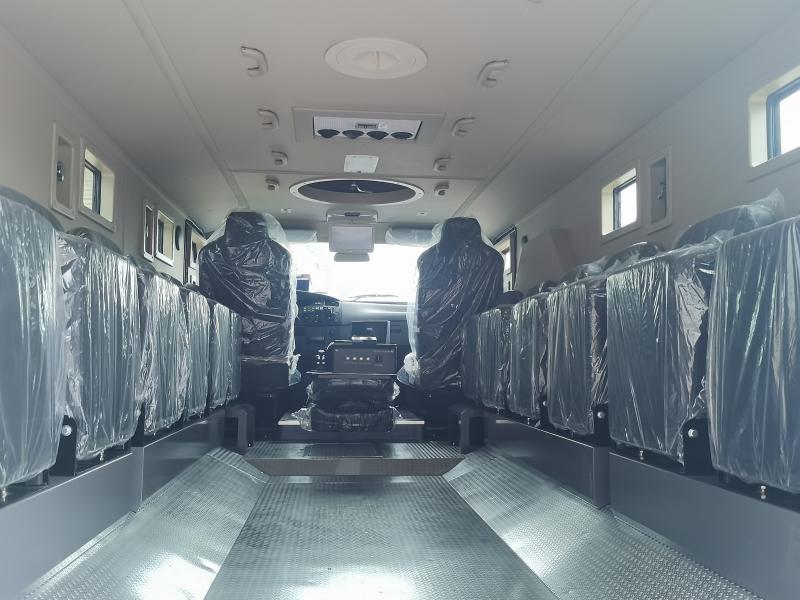

Seats capacity |
10seats |
|
Bulletproof performance
|
China class C level bulletproof(China GA668 Class C level,can withstand the attack of 95 rifles 87 type 5.8mm ordinary bullets at a distance of 20 meters) |
Main function description
(1)Bullet-proof Armored:
▲ The six sides of the vehicle body, fuel tank and water tank of the engine,with China class C level bulletproof performance, and can withstand the attack of 95 rifles 87 type5. 8mm ordinary bullets at a distance of 20 meters;
▲ The vehicle roof with full protection turret with bulletproof of China class C level;
▲ The vehicle body sides and the tailgate with bulletproof off-road vehicle wheel assembly, replace the original chassis wheels. And the wheel mounted with bulletproof device, after the flat tire can still 30km/h speed for more than 50 kilometers,then the vehicle can parked in a safe area.
(2)Anti-riot system
The vehicle lights and windshield installation anti-smashing protective net; door with tamper world lock, combined with the original car door locks to form dual door insurance.
(3)The vehicle mine resistant ambush protected refitted
The V shape hell design bottom of the vehicle that be modified to resist mines, simple explosives and other threats.
(4)Warning device
Consists of a cylindrical warning lights, sirens and tweeters.
(5)Air Exchange System
By the electric exhaust fan, overhead air conditioning, combined with the vehicle skeleton foam sound insulation, to ensure the quality of the vehicle air.
(6)With GPMG mountable equipment
(7)Engine compartment fire extinguishing device
The engine compartment equipped with automatic fire extinguishing device, to strengthen the engine fire protection.
(8)Other devices
Search for lights, surveillance systems, reversing rear view assembly,and so on.
